Introduction
Pumps are essential in industries ranging from water supply to manufacturing, oil and gas, agriculture, and power generation. One of the most critical choices when selecting a pump is deciding between horizontal and vertical configurations. Both designs have unique advantages and limitations, and the right selection depends on the application, installation environment, space, and operational requirements.
This article provides an in-depth comparison of horizontal vs. vertical pump configurations, covering their design, applications, benefits, drawbacks, and selection criteria.
Overview of Horizontal Pumps

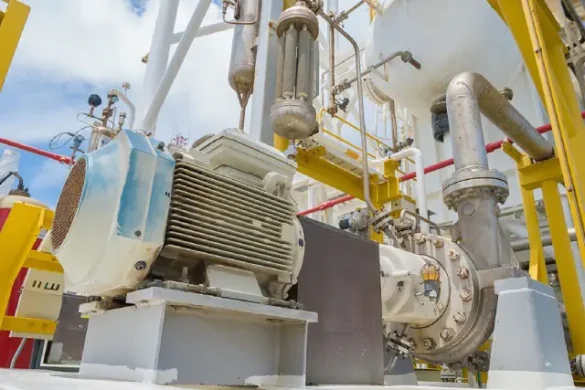

Horizontal pumps are designed with the shaft positioned horizontally, typically parallel to the ground. They are widely used across industries and are considered the most common pump type.
Advantages of Horizontal Pumps
- Ease of Maintenance: Components are accessible without dismantling major piping.
- Wider Availability: More models and manufacturers offer horizontal designs.
- Lower Initial Cost: Usually less expensive to purchase and install compared to vertical pumps.
- Flexibility: Suitable for a wide range of fluids, from clean water to slurries.
Disadvantages of Horizontal Pumps
- Space Requirements: Require more floor space due to their horizontal orientation.
- Suction Limitations: Limited suction lift compared to vertical designs.
- Flooding Risks: Susceptible to flooding in low-lying installations.
Common Applications of Horizontal Pumps
- Municipal water supply and distribution
- Industrial process plants
- Irrigation systems
- General utility services
Overview of Vertical Pumps
Vertical pumps have shafts oriented vertically, with the impeller submerged in the fluid. They are often used in applications where suction lift requirements or limited floor space make them ideal.
Advantages of Vertical Pumps
- Space Saving: Occupy less floor space, suitable for compact installations.
- Better Suction Capabilities: Impellers are submerged, eliminating priming issues and improving NPSH.
- High Flow Capacity: Capable of handling large volumes of water efficiently.
- Flood Protection: Motor remains above the fluid, reducing risk of damage during flooding.
Disadvantages of Vertical Pumps
- Higher Initial Cost: More expensive to purchase and install.
- Complex Maintenance: Maintenance can be difficult due to submerged parts.
- Noise and Vibration: Vertical shaft vibrations may affect system stability if not installed properly.
Common Applications of Vertical Pumps
- Cooling water circulation in power plants
- Flood control and drainage stations
- Large-scale irrigation
- Chemical and refinery processes
Key Factors to Consider When Choosing
Space Availability
- If floor space is limited, vertical pumps are more suitable.
- If there’s ample room, horizontal pumps may be more economical.
Suction Requirements
- Vertical pumps perform better where suction lift is an issue.
- Horizontal pumps are sufficient for installations with good suction conditions.
Maintenance Needs
- Horizontal pumps are easier and less costly to maintain.
- Vertical pumps require more specialized servicing.
Cost Considerations
- Horizontal pumps generally have lower upfront costs.
- Vertical pumps may have higher initial costs but can be more efficient in specific applications.
Application Environment
- For flood-prone areas, vertical pumps are safer.
- For dry, controlled environments, horizontal pumps work well.
Horizontal vs Vertical: At a Glance
- Horizontal Pumps → Cost-effective, easy maintenance, larger footprint.
- Vertical Pumps → Space-saving, excellent suction performance, higher cost.
Conclusion
Both horizontal and vertical pump configurations have vital roles in industrial and commercial applications. The choice depends on installation space, fluid conditions, suction requirements, budget, and maintenance preferences. By carefully evaluating these factors, businesses can select the pump that ensures efficiency, reliability, and cost-effectiveness.
FAQs
Q1: Which pump type is better for deep well applications?
Vertical pumps are better suited since they handle high suction lifts and submerged operations.
Q2: Are horizontal pumps more energy-efficient than vertical ones?
Efficiency depends on the specific design and application rather than orientation alone.
Q3: Which pump is easier to maintain?
Horizontal pumps are easier to access and maintain.
Q4: Why are vertical pumps common in power plants?
They save space, handle large volumes, and provide reliable cooling water circulation.
Q5: Do vertical pumps last longer than horizontal pumps?
Lifespan depends on operating conditions, but vertical pumps often have longer service life in high-capacity applications.
